Capsule Elevator

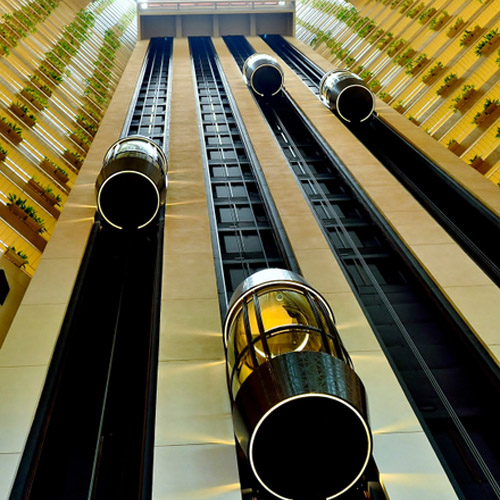

Capsule Elevator(Five Side)
Five sided glass elevators are further an advanced addition of the three sided glass capsule elevator for the bigger size capsules. Curved glasses are also available in this segment & capacities. These elevators are available from 13-16 Passengers.
Space Requirements For 'elegant Capsuule Elevators As Per Is: 14665
| Person | 6 | 8 | 10 | 13 | 16 | 20 |
|---|---|---|---|---|---|---|
| LOAD | 408 Kgs. | 544 Kg | 680 Kg. | 884 Kg | 1088 Kg | 1360 Kg |
| A | 1100 | 1300 | 1350 | 2000 | 2000 | 2000 |
| B | 1000 | 1100 | 1300 | 1100 | 1300 | 1550 |
| C | 1900 | 2050 | 2050 | 2700 | 2700 | 2900 |
| D | 1600 | 1700 | 1900 | 1700 | 1900 | 2150 |
| E | 800 | 800 | 800 | 900 | 1000 | 1000 |
| F | 400 | 395 | 450 | 475 | 450 | 600 |
| G | 400 | 355 | 250 | 225 | 250 | 300 |

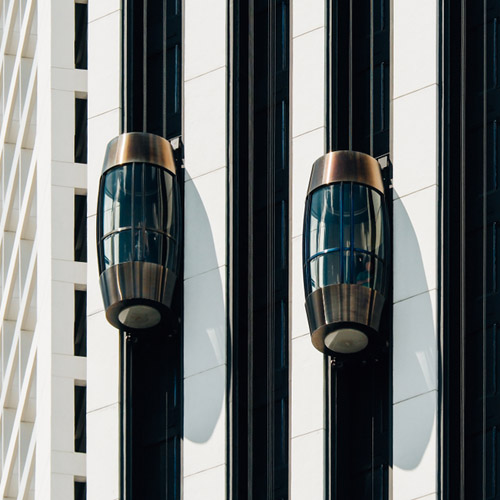

Drum Round Coloured SS

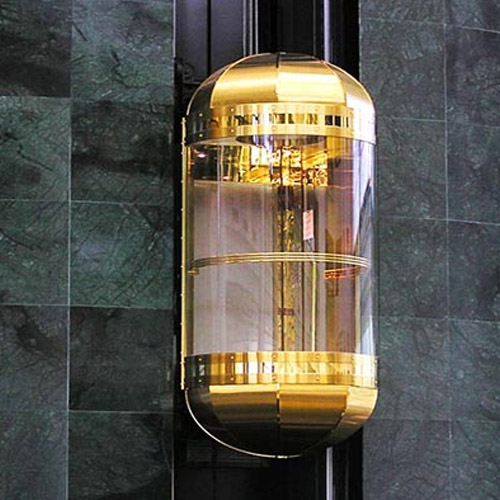

Round Golden Mirror
