Passenger Elevator
Elevators are the main transportation arteries in the modern building and are Vital in determining a building's economic success. The passenger elevators detailed here are designed to handle promptly and efficiently the transportation requirements of any type of building, which means any traffic condition.
Space Requirements For 'elegant Passenger Elevators As Per Is: 14665
| LOAD | CAR INSIDE | LIFT SHAFT/WELL | ENTRANCE | MACHINE ROOM | |||||
|---|---|---|---|---|---|---|---|---|---|
| Kg. | Persons | A | B | C | D | E | K | L | |
| 340 | 5 | 1170 | 820 | 1900 | 1300 | 700 | 1600 | 3350 | |
| 408 | *6 | 1100 | 1000 | 1900 | 1700 | 700 | 1600 | 3550 | |
| 544 | *8 | 1300 | 1100 | 1900 | 1800 | 700 | 1800 | 4000 | |
| 680 | 10 | 1300 | 1350 | 1900 | 2100 | 800 | 3400 | 4600 | |
| 884 | 13 | 2000 | 1100 | 2500 | 1900 | 900 | 4000 | 4400 | |
| 1088 | 16 | 2000 | 1300 | 2500 | 2100 | 1000 | 4000 | 4600 | |
| 1360 | 20 | 2000 | 1500 | 2500 | 2400 | 1000 | 4000 | 4900 | |

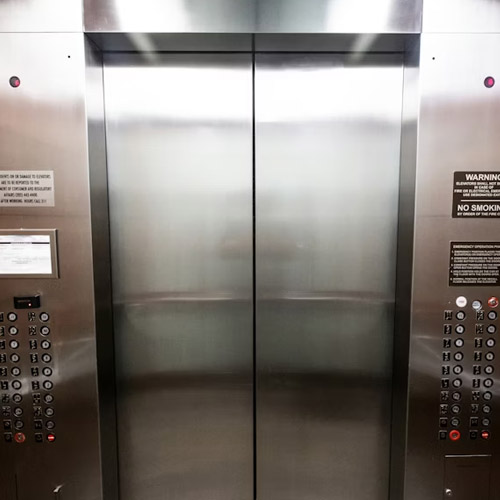

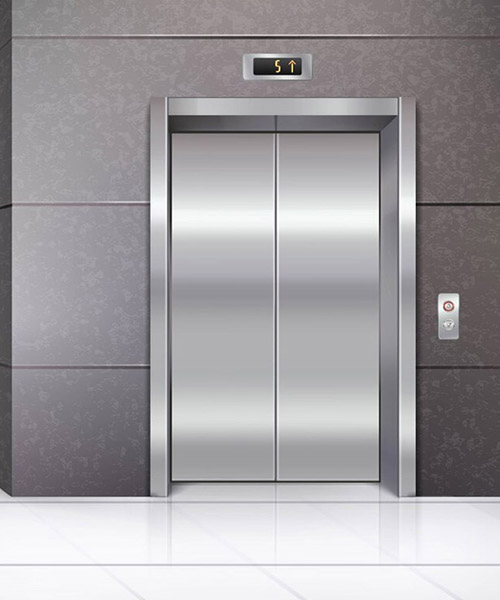

Automatic Centre Opening

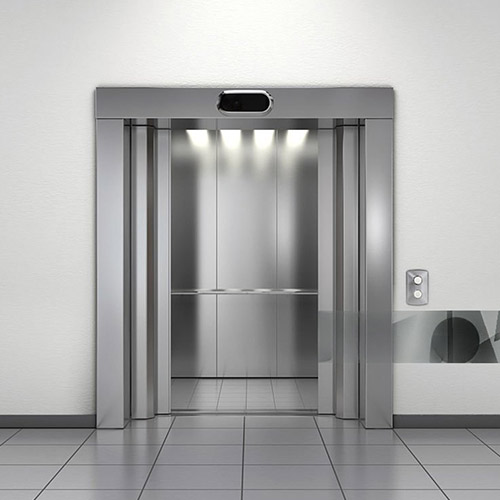

SS Textured Automatic Tele-scopic (With Glass)
